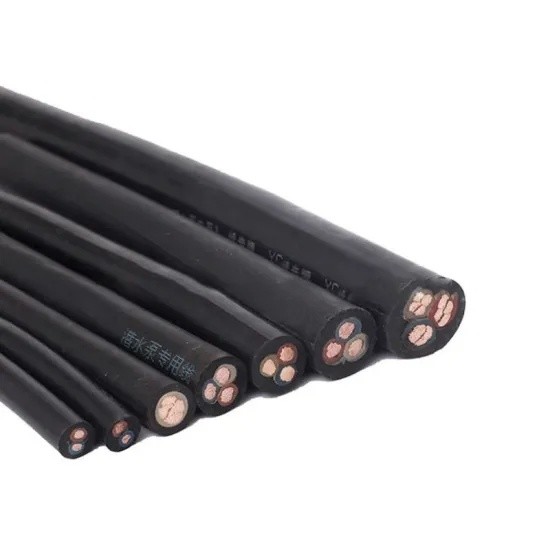

Flexible Rubber Welding Wire Cable 35mm2 50mm2 70mm2 Copper for Industrial Welding Cable YH YHF H01N2D Detailed Product Description 1th. Service Conditions This product is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value is 400V. 2th. Model, Names Main applications and Work In the Temperature CONSTRUCTION
Conductor
Generally to Class 6 flexible copper conductor according to IEC 60228 BS EN 60228 (previously BS 6360)
Separator
PET (Polyester Tape)
Sheath
The rubber compound, Technical data
Voltage Rating
100V
Working temperature:65ºC
Temperature Rating
Fixed: -40°C to +85°C
Flexed: -20°C to +85°C
Minimum Bending Radius
Flexed: 6 x overall diameter
Model |
Name |
Main applications |
Working temperature
of core ≤0C |
YH |
Natural Rubber Sheath for Welding Cable |
Always used indoor |
65 |
YHF |
Neoprene Rubber Sheath Welding Cable |
Always used outdoor |
65 |
Synthetic elastomer Sheath Welding Cable |
3th. Standards: IEC60245 4th. Specifications, Size, Weight and Technical Data
Conductor Nominal Section (mm2) |
Conductive Core |
Thickness of Section Sheath (mm) |
Average Outer Diameter (mm2) |
20oC Conductor Resistance≤(Ω/km) |
Reference Weight(kg/km) |
Number/Diameter of Core(mm) |
Min |
Max |
YH |
YHF |
10 |
322/0.20 |
1.8 |
7.5 |
9.7 |
1.91 |
146 |
153 |
16 |
513/0.20 |
2.0 |
9.2 |
11.5 |
1.16 |
218 |
230 |
25 |
798/0.20 |
2.0 |
10.5 |
13.0 |
0.758 |
316 |
331 |
35 |
1121/0.20 |
2.0 |
11.5 |
14.5 |
0.536 |
426 |
439 |
50 |
1596/0.20 |
2.2 |
13.5 |
17.0 |
0.379 |
592 |
610 |
70 |
2214/0.20 |
2.4 |
15.0 |
19.5 |
0.268 |
790 |
817 |
95 |
2997/0.20 |
2.6 |
17.0 |
22.0 |
0.198 |
1066 |
1102 |
120 |
1702/0.30 |
2.8 |
19.0 |
24.0 |
0.161 |
1348 |
1392 |
150 |
2135/0.30 |
3.0 |
21.0 |
27.0 |
0.129 |
1678 |
1698 |
185 |
1443/0.40 |
3.2 |
22.0 |
29.0 |
0.106 |
1983 |
2020 |
What is XLPE insulated power cable?
XLPE insulation is a type of insulation used in the power cable. It's a relatively new type of insulation that offers some unique features compared to traditional insulation materials.
One common type of XLPE is sheathed cable, a tube-like insulation covered in a protective sheath. This type of cable typically has an outer diameter of 3/8 inches (9 mm) or less and is suitable for applications with critical flexibility and durability.
The unsheathed cable typically has an outer diameter of 5/16 inches (8 mm) or greater and is best suited for applications where durability and resistance to corrosion are essential. This cable type is typically used in electric traction lines, switchgear, and heavy construction equipment applications.
What are the key benefits of using XLPE-insulated power cables?
The benefits of using XLPE-insulated power cables are significant. These cables offer many advantages over other types of insulation, such as being more flexible and lighter weight. Additionally, they are often less costly to produce, which can lead to savings on your energy bills. It is important to understand the different types of XLPE to choose the right style for your application. Additionally, XLPE cables have a low impedance which means they can carry higher currents without deteriorating performance. They also have low capacitance, reducing crosstalk and noise interference.
